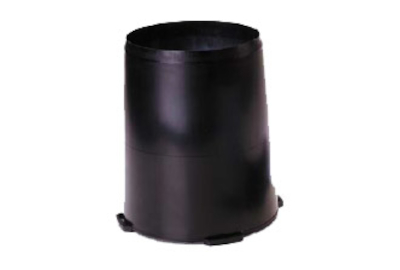

RG200 Rain Gauge, 6 inch (Tipping Bucket)​

With minimal care, the rain gauge will provide many years of service.  All rain gauges are constructed of high impact UV-protected plastic to provide reliable, low-cost rainfall monitoring.  The simplicity of the rain gauge design assures trouble-free operation, yet provides accurate rainfall measurements.  RG200 rain gauges have a 6 inch orifice and are shipped complete with mounting brackets and 40 ft of two-conductor cable.  The rain gauge sensor mechanism activates a sealed reed switch that produces a contact closure for each 0.01 inch or 0.25 mm of rainfall. Global Water’s iRIS 150 rain gauge data logger adds recording capabilities to the RG200 rain gauge.  The datalogger connects to the rain gauge’s pulse output to record data.  In addition, Global Water offers the RG700 4-20mA Output Rain Gauge Converter Module to convert the rain gauge’s pulse output to a current output for use with recording systems that receive 4-20mA signals.
